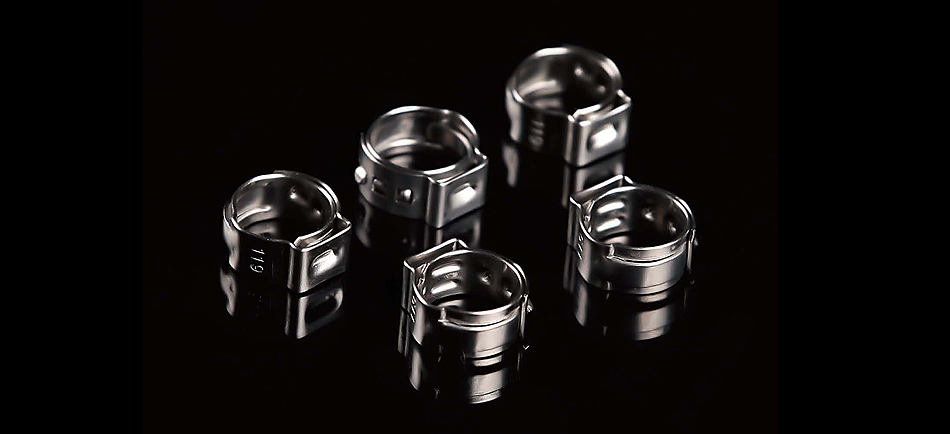

The term “Stepless” refers to the absence of steps or gaps on the inner circumference of the clamp. The stepless design provides uniform compression and a 360°seal.
Standard series stepless ear clamps are especially well suited to both hoses and hard pipes.
The reinforced stepless series clamps are ideal for difficult to seal applications such as aluminum pipe and other pipes made of small elasticity materials, commonly used in the automotive industry.
PEX series stepless ear clamps are only well suited to PEX tubing.
Features 360°Stepless Design - no steps or gaps on inner circumference and narrow band design, providing concentrated seal compression.
Specially formed strip edges reduce the damage of the part being clamped.Lightweight with obvious clamping effect.
Material Alternate materials optional
Installation Tools
HDCLAMP Pincers for manual closure
HDCLAMP recommends pneumatic pincers with electronic gauging,
to ensure repeatable assembly and uniform closure , particularly for
mass production applications.
Standard Series
Size Range Thickness x Width
6.5 - 11.8 mm 0.5 x 5.0 mm
11.9 - 120.5 mm 0.6 x 0 7 mm
21.0 - 120.5 mm 0.8 x 9 0 mm
Heavy Duty Series
Size Range Thickness x Width
62.0 - 120.5 mm 1.0 x 10.0 mm PEX Series
Size Range Thickness x Width
13.3mm 0.6 x 7.0mm
17.5mm 0.8 x 7.0mm
23.3mm 0.8 x 9.0mm
29.6mm 1.0 x 10.0mm
